DJI

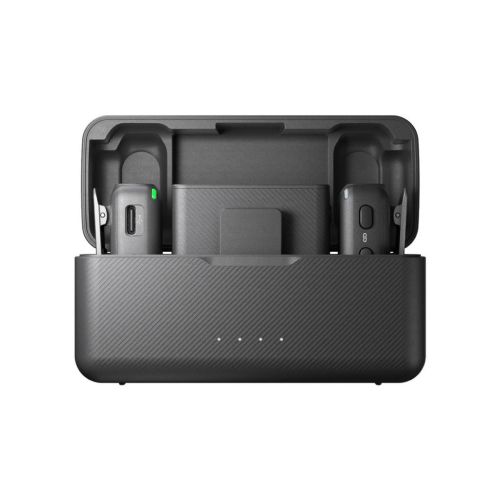

Mic Wireless Microphone Kit
DJI Mic Transmitters Dimensions - 47.32×30.43×20.01 mm Weight - 30 g Wireless mode - GFSK 1 Mbps and 2 Mbps Equivalent isotropic radiated power (EIRP) - <20 dBm Operating Frequency - 2400-2483.5 MHz Battery type - LiPo 1S Battery capacity - 320 mAh Battery energy - 1.23 Wh Battery voltage - 3.85 V Charging Temperature - 5 to 45° C (41° to 113° F) Operating Temperature - -10° to 45° C (14° to 113° F) Charging Time - 70 mins Operating Time - 5.5 hours DJI Mic Receiver Dimensions - 47.44×32.21×17.35 mm Weight - 24.9 g Wireless mode - GFSK 1 Mbps and 2 Mbps Equivalent isotropic radiated power (EIRP) - <20 dBm Operating frequency - 2400-2483.5 MHz Battery Type - LiPo 1S Battery capacity - 320 mAh Battery energy - 1.23 Wh Battery voltage - 3.85 V Charging temperature - 5 to 45° C (41° to 113° F) Operating temperature - -10° to 45° C (14° to 113° F) Charging time - 70 mins Operating time - 5 hours Charging Case Dimensions - 103.06×61.87×41.50 mm Weight - 162.2 g Battery type - LiPo 1S Battery capacity - 2600 mAh Battery energy - 10 Wh Battery voltage - 3.87 V Charging temperature - 5 to 45° C (41° to 113° F) Operating temperature - 5 to 45° C (41° to 113° F) Charging time - 2 hours and 40 mins Operating time - fully charge three devices simultaneously 1.8 times General Microphone directions - All Directions Frequency response Low Cut Off - 50 Hz - 20 kHz Low Cut On - 150 Hz - 20 kHz Max sound pressure Level (SPL) - 114 dB SPL Max input level (3.5 mm) - -17 dBV (THD < 0.1%) Equivalent noise - 23 dBA Monitor interface output power - Max output 22mW@1kHz, 32Ω Max transmission distance - 250 m (FCC) 160 m (CE)
