Desktop Apple Mac Studio M5 Ultra chip

Specifications

Processor

Apple M5 Ultra

Storage Capacity

1 TB

System Storage Capacity

96 GB

technicalSpecifications

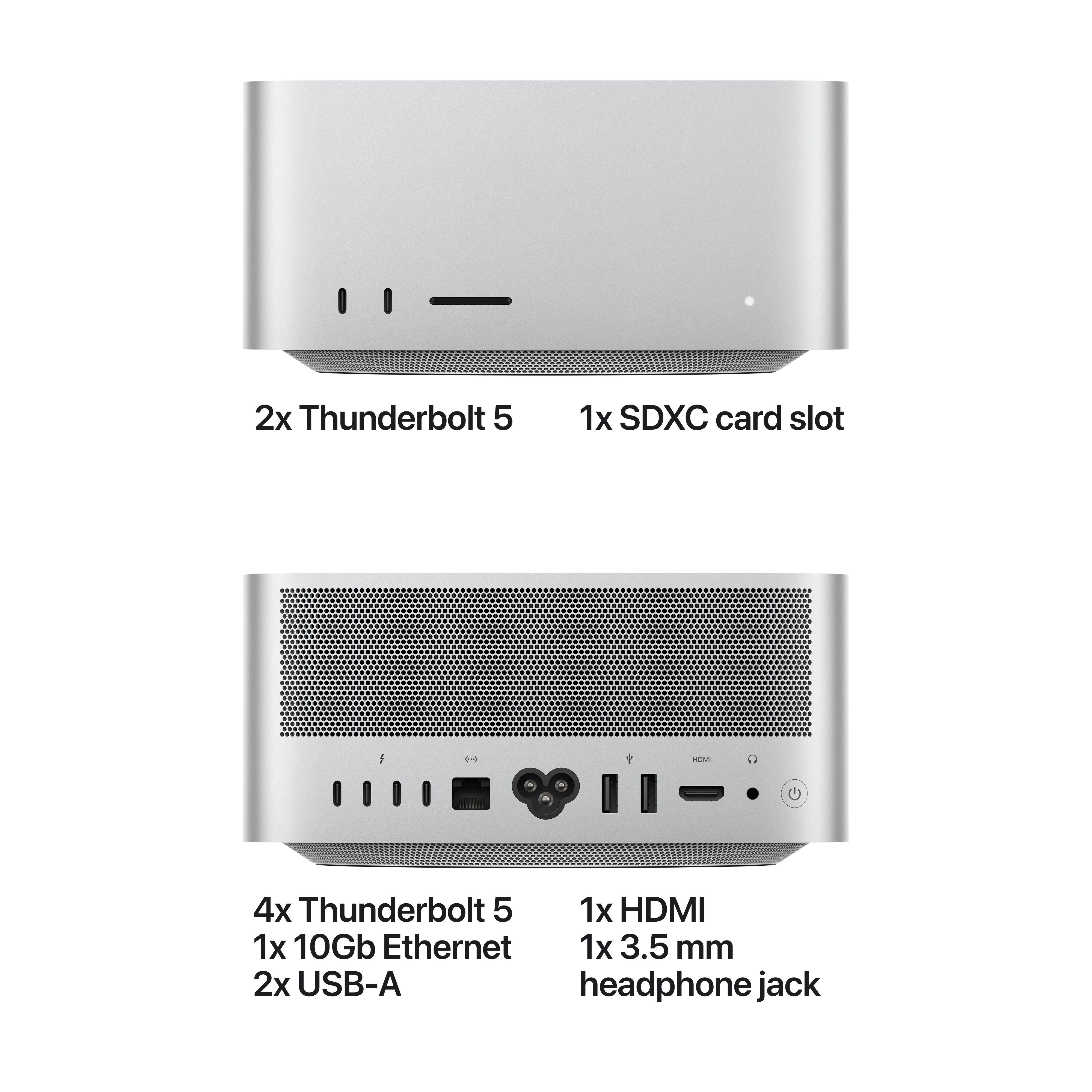

Apple M5 Ultra chip 30-core CPU with 10 super cores and 20 performance cores 64-core GPU Neural Accelerators Hardware-accelerated ray tracing 32-core Neural Engine 1.2TB/s memory bandwidth Media Engine Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW Two video decode engines Four video encode engines Four ProRes encode and decode engines AV1 decode Configurable to: M5 Ultra with 36-core CPU, 80-core GPU, and 32-core Neural Engine (1.2TB/s memory bandwidth) Memory 96GB 96GB unified memory Configurable to: 256GB or 512GB (M5 Ultra with 36-core CPU and 80-core GPU) Storage 1TB 1TB SSD Configurable to: 2TB, 4TB, 8TB, or 16TB Display Support Supports up to eight external displays over any combination of Thunderbolt and HDMI ports: Eight displays up to a native resolution of 6K at 60Hz or 4K resolution at up to 165Hz Up to four displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz Supports up to four external displays over a single Thunderbolt port Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds Supports variable refresh rate (VRR), HDR, and multichannel audio Audio Built-in speaker 3.5 mm headphone jack with advanced support for high-impedance headphones HDMI port supports multichannel audio output Connections and Expansion Four Thunderbolt 5 (USB‑C) ports with support for: Thunderbolt 5 (up to 120Gb/s) USB 4 (up to 120Gb/s) USB 3 (up to 10Gb/s) DisplayPort 2.1 Two USB 3 (USB‑A) ports (up to 5Gb/s) HDMI 2.1 port 10Gb Ethernet 3.5 mm headphone jack On front: Two Thunderbolt 5 ports (up to 120Gb/s) SDXC card slot (UHS-II) Communications Wireless Apple N1 wireless networking chip Wi‑Fi 7 (802.11be) Bluetooth 6 Thread networking technology Ethernet 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector) Size and Weight Height: 3.7 inches (9.5 cm) Width: 7.7 inches (19.7 cm) Depth: 7.7 inches (19.7 cm) Weight (M5 Max): 6.0 pounds (2.7 kg) Weight (M5 Ultra): 8.0 pounds (3.6 kg) Electrical and Operating Requirements Line voltage: 100–240V AC Frequency: 50Hz to 60Hz, single phase Maximum continuous power: 480W Operating temperature: 50° to 95° F (10° to 35° C) Storage temperature: –40° to 116° F (–40° to 47° C) Relative humidity: 5% to 90% noncondensing Operating altitude: tested up to 16,400 feet (5000 meters) In the Box Mac Studio Power cord Operating System macOS macOS is the most advanced desktop operating system in the world. Siri AI is a powerful and capable assistant with personal context understanding, broad world knowledge, and onscreen awareness. Express yourself through photos and images, save time with Safari, and get more done with Apple Intelligence seamlessly integrated into your everyday apps and experiences. And iPhone Mirroring,4 window tiling, Sidecar, and more help you stay productive.

Variants

1 variants

Category

Desktops

Brand

Apple
